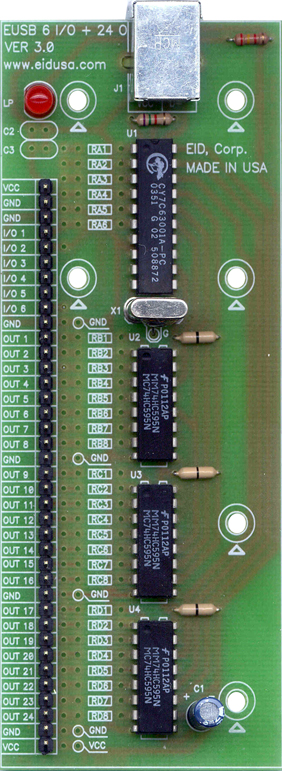

EUSB to 6 I/O plus 24 Outputs Kit

EID's universal serial bus (EUSB) to 6 I/O kit (6 I/O read or write) plus 24 outputs is an educational electronics kit that allows you to connect your personal computer (PC) universal serial port to 6 Input/output and additional 24 outputs pins. The kit is based on Cypress integrated circuit (IC), the CY7C63001.

Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specification, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the the CY7C63001 chip data-sheet.

No need for external Power supply! The board is powered directly from your PC.

Kit mounting

This kit includes on board pre-installed free EUSB firmware!

EUSB Basics

Description and SKU#

Price


EUSB to 6 I/O & 24 Outputs Kit

EID-K-EUSB-6PIO-24O-ASM   Fully assembled

EID-K-EUSB-6PIO-24O-PCB   PCB Only

EID-K-EUSB-6PIO-24O-KIT    Kit

EID-K-EUS-BS-LIB1S   Software (Library only)

93.00

24.60

84.75

12.00

^{EUSB A to B Cables}

^{This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.}

^{EID-C-USB-32-930  3’}

^{EID-C-USB-32-931  6’}

^{EID-C-USB-32-932  10’}

^{EID-C-USB-32-933  15’}

^9.99

^10.99

^11.99

^15.99

USB Complete (Second Edition) by J. Alexson

EID-K-BOOK-USB-001  Regular price

EID-K-BOOK-USB-0KC  w/ kit purchase

NEW! We carry technical books...

LEARN & SAVE!

This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!

49.95

33.33

  ^•
