Summing Operational Amplifier kit.

The operational amplifier (op- amp) is a highly efficient monolithic integrated circuit.  An amplifier has an input port and an output port. In a linear amplifier, output signal = A * (time) input signal, where A is the amplification factor or gain (positive or negative number). The Op-Amp has a very high gain, high input impedance, and DC coupled difference amplifier with a low impedance single ended output.

An ideal op-amp, by itself, is not a very useful device since any finite input signal would result in infinite output. By connecting external resistors around the ideal op-amp, we construct useful amplifier circuits. The basic summing amplifier call summing since the output signal is define as the voltage summing of the two inputs. If desire multiply be certain gain.

The kit should be powered via 9V battery simply connect the battery (+) poll to the VCC and the negative poll (-) to the Ground (GND).

Note: Vin or Vcom should be smaller then (VCC-VSS-0.4V)/2

Since the Op-Amp is not ideal the error can be adjust via adjustable gain trimmer (PY). Additional multi turn trimmer (PO) assigned to accurate adjust Op-Amp offset-null if desire.

The board function is define in the following formulas:

Where;

G = Gain

R1 = R2

Vout1 = Vin + Vcom

Kit Includes

• RE3140                IC                1pc.

• 10k Ohms            Resistor         2pc.

• 100k Ohms           Resistor         2pc.

• 10k Ohms            Trimmer         1pc.

• 22pF                   Capacitor       1pc.

• 2P Terminal Block  Connector      2pc.

• 3P Terminal Block  Connector      1pc.

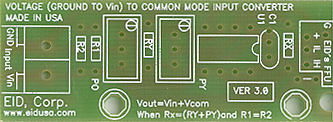

• PCB                                        1pc.

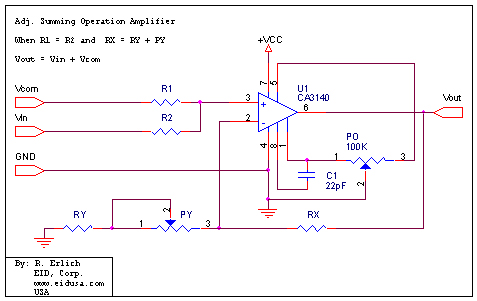

Schematic

Description and SKU#

Price


Summing OP-AMP Kit

EID-K-OP-AMP-SUM-ASM Fully assembled

32.33

EID-K-OP-AMP-SUM-KIT   Kit

27.93

  ^•
