The PICER-LCD-XY1 is an educational electronics kit that allows you to control LCD directly from PIC (PIC16F690) Micro-controller.



The PICER-LCD-XY1, is the fun and easy way to write to Liquid Crystal Display (LCD).



One can program the PIC16F690 Micro-controller Flash memory using his/her PICKIT 2 (sold directly from Microchip Corporation) directly from a personal computer (PC) via our adaptor board the PK2-A3 (sold separately).



The board utilizes the PIC16F690 IC (20 pin DIP configuration). The board also includes connector (J1) that allows you to connect 4 10-bit ADC lines and a few I/Os. The J2 connector is for those who desire to connect back light LCD.



Do It Yourself (DIY) build a software driven micro-processor base LCD kit, and have a blast!

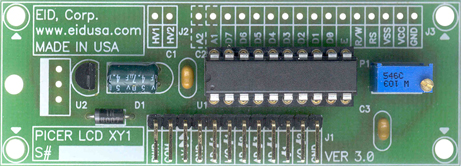

The Kit shown above without the LCD (sold separately)

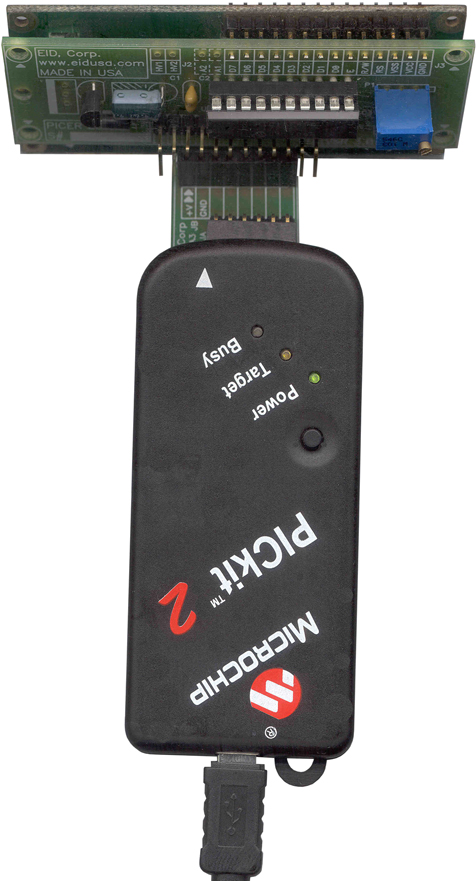

The Kit shown above (front view) connected to 1 line 16 Characters LCD (sold separately)

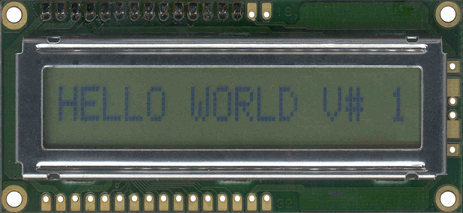

The Kit shown above (side view) connected to 1 line 16 Characters LCD, and PICKITTM 2**.



PICKIT-2, USB cable, connectors and LCD are sold separately



** PICKIT 2 is register Tradmark of Microchip Corp.



Kit Includes:

  • PIC 16F690                         1pc.

  • 78L05  Voltage regulator       1pc.

  • Diode 1N4007                      1pc.

  • 4.7uf/25v          Capacitor     1pc.

  • 0.1uf/50v          Capacitor     2pc.

  • 10K                  Trimmer        1pc.

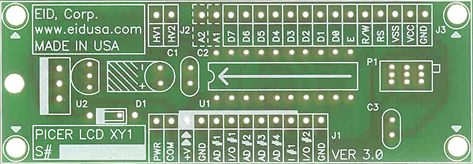

  • PCB                                    1pc.

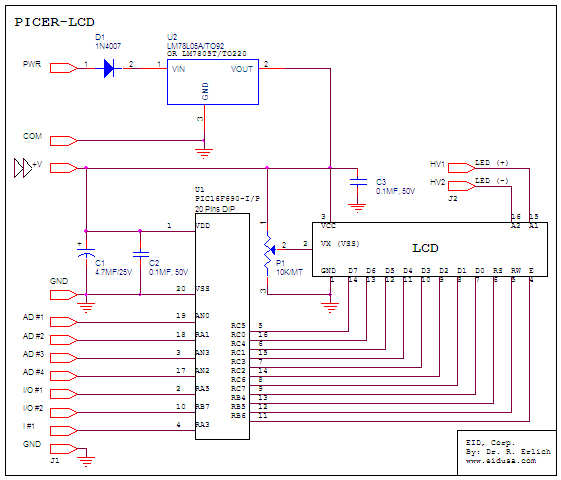

Schematic:















Down load your code directly using your PICKIT2 via our PK2-AD3 adepter sold separately






Character Type Liquid Crystal Display (LCD) Modules Features

1.        5x8 dot matrix

2.        Built-in controller (KS0066 or equivalent)

3.        +5V or +3.3V power supply

4.        1/16 duty cycle

5.        8-bit parallel interface






LCD Kit Interface pin Connections information



LCD 16 pins (14 I/O + 2 for Back-light)



No.

Symbol

Function

PIC16F690 pin #

PIC Pin Symbol

1

VSS

Ground

20

GND

2

VDD

Power supply

1

VCC

3

VO

Contrast adjust

N/A

VSS

4

RS

Register select

13

RB4

5

R/W

Read / Write

12

RB5

6

E

Enable signal

11

RB6

7

DB0

Data bus

9

RC7

8

DB1

Data bus

8

RC6

9

DB2

Data bus

14

RC2

10

DB3

Data bus

7

RC3

11

DB4

Data bus

15

RC1

12

DB5

Data bus

6

RC4

13

DB6

Data bus

16

RC0

14

DB7

Data bus

5

RC5



Back-light



No.

Symbol

Function

J2 Pins

Symbol

15

K

Backlight (-)

1

   HV1

16

A

Backlight (+)

2

   HV2



J4 & J5  I/O or Power indication or LED control:



*** For power indication G short to X



No.

Symbol

Function

CY7C63001A No

Symbol

G

VSS

Ground

7 & 8

GND

X

I/O 1'

I/O

1

P0.0 via 2.4K resistor to I/O1




LCD  Character Address Code



Display position

1

2

3

4

5

6

7

8

9

10

 11

12

13

14

15

16

Display DDRAM address

00

01

02

03

04

05

06

07

40

41

42

43

44

45

46

47






Code Instruction Set for Character Type LCD Modules



Instruction

Code

Description

RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

Clear
display

0

0

0

0

0

0

0

0

0

1

Clear display and return the cursor to home position
(Address 0).
Sets I/D=1 of Entry Mode

Return
home

0

0

0

0

0

0

0

0

1

*

Return the cursor to the home position (Address 0). Also return the display being shifted to the original position.
DD RAM contents remain unchanged.
Set DD RAM addresses to zero.

Entry
mode
set

0

0

0

0

0

0

0

0

I/D

S

Set the cursor move direction and specifies or not to shift the display. These operations are performed during data write and read of DD RAM/CG RAM.
For normal operation, set S to 0.

Display
On/Off
control

0

0

0

0

0

0

1

D

C

B

Set On/Off all display (D), cursor On/Off (C), and blink of cursor position character (B)

Cursor of
display
shift

0

0

0

0

0

1

S/C

R/L

*

*

Move the cursor and shift the display without changing DD RAM contents

Function
set

0

0

0

0

1

DL

N

F

*

*

Set interface data length (DL), number of display lines (N) and character font (F)

Set the
CG RAM
address

0

0

0

1

MSB          ACG

LSB

Set the CG RAM address. CG RAM data is sent and recievd after this setting

Set the
DD RAM
address

0

0

1

MSB                 ADD

LSB

Set the DD RAM address. DD RAM data is sent and recievd after this setting

Read
busy flag
&
address

0

1



MSB                 AC

LSB

Read Busy flag (BF) indicating internal operation is being performed and read address counter contents

Write
data to
CG or
DD RAM

1

0

MSB                                                LSB

Write data into DD RAM or CG RAM

Read
data
from
CG or DD
RAM

1

1

MSB                                                LSB

Read data from DD RAM or CG RAM



S=1 : accompanies display shift when data is written for normal operation set to 0

DD RAM : Display Data RAM

I/D = 1 : Increment

DL = 1 : 8 bits

CG RAM : Character Generator RAM

I/D = 0: Decrement

DL = 0: 4 bits

ACG : CG RAM Address

S/C = 1 : Display shift

N = 1 : 2 (1) line

ADD : DD RAM Address corresponds to cursor address

S/C = 0: Cursor move

N = 0 : 1 line

AC : Address Counter used for both DD and CG RAM addresses

R/L = 1 : Shift to the right

F = 1 : 5x10 dots

B : 1 = On, 0= Off (Blinking cursor)

R/L = 0: Shift to the left

F = 0: 5x7 dots

C : 1 = On, 0= Off (Cursor)

BF = 1 : Internally operating

D : 1 = On, 0= Off (Display)

BF = 0: Can accept instruction

*= Don't care



* The module automatically performed initialization when powered on (using internal reset circuit). The following instructions are executed during initialization:



1 Clear Display

The Busy Flag in the buisy state (BF = 1) unit initialization ends. The time is 15 ms.

2 Function Set

DL = 1 : 8 bits long interface data
N = 0: 1 Line display

3 Display On/Off Control

D = 0: Display OFF
C = 0: Cursor OFF
B = 0: Blink OFF

4 Entry mode Set

I/D = 1 : +1(INCREMENT)
S = 0: NO SHIFT

5 DD RAM is Selected

Power On Initialization depends on rise time of the supply when it is turned on. The following time relationship must be satisfied.




Item

Symbol

Standard

Unit

Min

Typ

Max

Power Supply Rise Time

t rec

0.1

-

10

ms

Power Supply Off Time

t off

1.0

-

-

ms





Power On Timing Diagram

Power On Timing Diagram



Note: When the above power supply condition is not satisfied, the internal reset circuitry does not operate correctly. In this case perform the needed initialization by sending function set instructions thrice from MPU after turning the power on. For example, to designate an 8-bit data length, set the following instructions thrice.



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

*

*

*

*

0

0

0

0

1

1

*

*

*

*

0

0

0

0

1

1

*

*

*

*




Character Type LCD Modules Initialization For 8 bit data interfacing



Power On



Wait for 15ms or more after Vcc rises to 4.5v Please be advised that BF cannot be checked at this time



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

X

X

X

X

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization

Wait for 4.1ms or more Please be advised that BF cannot be checked at this time



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

X

X

X

X

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



Wait for 100us or more



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

X

X

X

X

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



BF cannot be checked at this time, check for not busy



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

N

F

X

X

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization0



check for not busy



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

0

0

1

0

0

0

Display off



check for not busy



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

0

0

0

0

0

1

Clears all display and returns cursor to home position



check for not busy



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

0

0

0

1

I/D

S

Set the shift mode



End of Initialization




Character Type LCD Modules Initialization For 4 bit data interfacing

Power On

Wait for 15ms or more after Vcc rises to 4.5v. Please be advised that BF cannot be checked at this time



RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

1

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



Wait for 4.1ms or more. Please be advised that BF cannot be

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

1

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



Wait for 100us or more Please be advised that BF cannot be

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

1

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

0

Function set :
DL = 0, 4 bit interface data



check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

1

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

0

0

0

N

F

X

X

Function set :
DL = 0, 4 bit interface data
N = No. of lines
F = character font



check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

0

0

0

0

1

0

0

0

Display off

check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

0

0

0

0

0

0

0

1

Display on

Check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

0

0

0

0

0

1

I/D

S

Entry mode set

End of Initialization




Typical Character Type LCD Modules Block Diagrams



16x1 DMM, 1/16 MUX



16x1 DMM, 1/16 MUX block diagram


16x2 DMM, 1/16 MUX



16x2 DMM, 1/16 MUX block diagram


16x4 DMM, 1/16 MUX



16x4 DMM, 1/16 MUX block diagram


20x2 DMM, 1/16 MUX



20x2 DMM, 1/16 MUX block diagram


20x4 DMM, 1/16 MUX



20x4 DMM, 1/16 MUX block diagram


24x2 DMM, 1/16 MUX



24x2 DMM, 1/16 MUX block diagram


40x4 DMM, 1/16 MUX



40x4 DMM, 1/16 MUX block diagram






Software Tips:



1. W holds the character to move to Port C (The display data lines) DB0 to DB7 (8 Bits)



An example move 'A' --> W --> PORT C



                   MOVLW        81H              ;'A' --> W

                   MOVWF       PORTC           ;W --> PORT C



See below table for all the ASCII characters:



CA                MOVLW       81H               ;A

SA                MOVLW       91H               ;a

CB                MOVLW       41H               ;B

SB                MOVLW       51H               ;b

CC                MOVLW       0C1H             ;C

SC                MOVLW       0D1H             ;c

CD                MOVLW       05H               ;D

SD                MOVLW       15H               ;d

CE                MOVLW       85H               ;E

SE                MOVLW       95H               ;e

CF                MOVLW       45H               ;F

SF                MOVLW       55H               ;f

CG                MOVLW       0C5H             ;G

SG                MOVLW       0D5H             ;g

CH                MOVLW       09H               ;H

SH                MOVLW       19H               ;h

CI                 MOVLW       89H               ;I

SI                 MOVLW       79H               ;i

CJ                 MOVLW       49H               ;J

SJ                 MOVLW       59H               ;j

CK                MOVLW       0C9H              ;K

SK                MOVLW       0D9H              ;k

CL                MOVLW       0DH                ;L

SL                MOVLW       1DH                ;l

CM                MOVLW       8DH               ;M

SM                MOVLW       9DH               ;m

CN                MOVLW       4DH               ;N

SN                MOVLW       5DH               ;n

CO                MOVLW       0CDH             ;O

SO                MOVLW       0DDH             ;o

CP                MOVLW       03H               ;P

SP                MOVLW       13H               ;p

CQ                MOVLW       83H               ;Q

SQ                MOVLW       93H               ;q

CR                MOVLW       43H               ;R

SR                MOVLW       53H               ;r

CS                MOVLW       0C3H             ;S

SS                MOVLW       0D3H             ;s

CT                MOVLW       07H               ;T

ST                MOVLW       17H               ;t

CU                MOVLW       87H               ;U

SU                MOVLW       97H               ;u

CV                MOVLW       47H               ;V

SV                MOVLW       57H               ;v

CW               MOVLW       0C7H             ;W

SW               MOVLW       0D7H             ;w

CX                MOVLW       0BH               ;X

SX                MOVLW       1BH               ;x

CY                MOVLW       8BH               ;Y

SY                MOVLW       9BH               ;y

CZ                MOVLW       4BH               ;Z

SZ                MOVLW       5BH               ;s

N0                MOVLW       12H               ;0

N1                MOVLW       92H               ;1

N2                MOVLW       52H               ;2

N3                MOVLW       0D2H             ;3

N4                MOVLW       16H               ;4

N5                MOVLW       96H               ;5

N6                MOVLW       56H               ;6

N7                MOVLW       0D6H             ;7

N8                MOVLW       1AH               ;8

N9                MOVLW       9AH               ;9

DOT              MOVLW       5CH               ;.

COMA            MOVLW       1CH               ;,

DEG              MOVLW       0EFH             ;Degree

EQL               MOVLW       9EH               ;=

AT                MOVLW       01H               ;@

NUM              MOVLW       0D0H             ;#

SPC              MOVLW       30H               ;Space



Note: LCD sold separately!



Description and SKU#

Price


PIC to CHARACTER LCD kit

EID-K-PIC-LCD-XY1-ASM   Fully assembled



49.00





EID-K-PIC-LCD-XY1-KIT   Kit only

39.75



EID-K-PIC-LCD-XY1-PCB   PCB only

12.75



PICKIT2 to PICER-LCD-XY1 adaptor

EID-K-PIC-LCD-XY1-PK2-A3-PCB   PCB only

6.75



  •
