DC to DC Step-down basic Voltage Regulator Kit is an Electronics board that allows you to connect up to 36V DC into one side (input) of the board and get lower regulated DC voltage (i.e. 5VDC, 6VDC, 9VDC ...) on the other side (output).

There are variety of regulator configurations to choose from:

Kit Includes:

• 780X   Voltage Regulator  1pc.

• 0.1MF Capacitor             2pc.

• PCB                              1pc.

Note: The wires are for demonstration only and are not included in this kit.

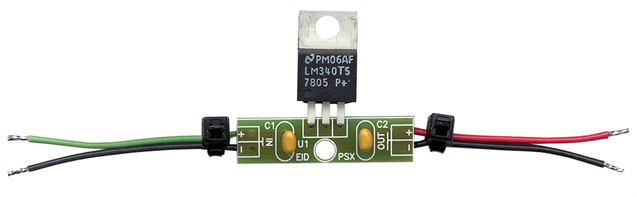

5V/800mA output regulator (Shown above TO-220 Package)

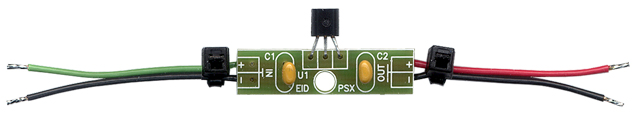

5V/100mA output regulator (Shown above TO-92 Package)

Description and SKU#

Price


DC-DC, Input up to 36V DC output see above table

Note: up to 800mA (TO-220) low prices.

EID-K-VRG-05V-L3-ASM Fully assembled 5V

EID-K-VRG-06V-L3-ASM Fully assembled 6V

EID-K-VRG-9VA-L3-ASM Fully assembled 9V

EID-K-VRG-12V-L3-ASM Fully assembled 12V

EID-K-VRG-15V-L3-ASM Fully assembled 15V

EID-K-VRG-18V-L3-ASM Fully assembled 18V

EID-K-VRG-24V-L3-ASM Fully assembled 24V

10.00

12.99

10.00

10.00

12.36

14.00

15.00

DC-DC, Input up to 36V DC output see above table

100mA (TO-92) same low prices.

EID-K-VRG-05V-L4-ASM Fully assembled 5V

EID-K-VRG-9VA-L4-ASM Fully assembled 9V

10.00

10.00

4 wires additional per 6"  add -W6 to SKU#

4 wires additional per 12" -W12 to SKU#

Wiring soldered to board, additional per wire, per fit

3.99

6.99

7.99

EID-K-VRG-XXX-PCB PCB Only

7.99

PCB Only

EID-K-VRG-05-L3-KIT Kit 5V

EID-K-VRG-06-L3-KIT Kit 6V

EID-K-VRG-09-L3-KIT Kit 9V

EID-K-VRG-012-L3-KIT Kit 12V

EID-K-VRG-015-L3-KIT Kit 15V

EID-K-VRG-018-L3-KIT Kit 18V

EID-K-VRG-024K-L3-kIT Kit 24V

8.99

11.99

8.99

8.99

11.99

12.99

13.99

EID-K-VRG-05-L4-KIT Kit 5V

EID-K-VRG-09-L4-KIT Kit 9V

8.99

8.99

  ^•
