Touch Up Paint

• For use in matching standard Hammond Mfg. colors

• Supplied in 12 oz. spray cans

Literature Pocket Kit

• Typically applied inside the door or side panels of the rack

• For literature storage

• Kit includes plastic pocket, high strength two-sided adhesive tape and surface preparation swab

• Plastic pocket is black

Side Panel Lock Kit (Contempra 2 Racks)

• For higher security, the quarter turn fasteners on our side panels
  can be replaced with this key locking version.

• Kit contains 4 quarter turn locks and 8 keys (all keyed alike).

• Good for 1 rack (ie...2 locks per side panel)

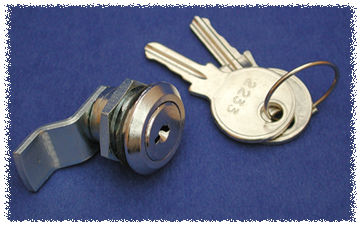

Cam Flush Lock Kit

• Quarter turn fastener

• Mounts flush in a 0.760" x 0.655" double D hole or alternately a 0.75" diameter hole..

• Kit contains 1 quarter turn lock and 2 keys (all keyed alike).

• Chrome plated brass housing with reversible cam.

Ground Bus Bars

• Full Length copper bar - mounts vertically

• 0.13" thick x 0.63" wide

• Mounts to amhal struts of "C2" Contempra racks or REFK racks

• Includes mounting hardware

Ground Lugs

• Dual L16 type aluminum lug

• 1 1/8" wide x 1 3/16" long

• Provides excellent grounding

• Accepts wire sizes from 1/0 to 14

• Usually used in conjunction with bus bar (above)

• Packaged individually

• Mounting hardware not included (requires drilling of bus bar)

Light Kit

• Designed to fit inside the cabinets

• Features a manually operated switch, 115VAC convenience outlet, durable plastic lens (replacement lens below) and 6' power cord (without plug)

• Finished in white

• CSA & UL component recognized

• Installs with 1/4-20 bolts placed through holes (user drilled) in top of cabinet (or use magnet mount below). Screws and sealing washers provided

• Uses standard 18" florescent lamps (NOT INCLUDED)

• 1 3/4" high x 4 1/2" deep

• Includes mounting hardware

Light Kit Magnet Mount

• Designed to allow solid mounting of light kit (above) without drilling

• Also allows light to be easily moved within the rack

• Full length of light kit
