Soldering Pots (SP)



All pots are in stock. Choose from variety of high grade solder pots. We can custom them to fit your manufacturing needs. Good news for the hundreds who call about ETI soldering pots." Yes, we carry the flagship solder pots by Esico-Triton Inc (ETI).



Same Great Quality - now lead free compatible!



To meet our customer needs, each soldering pot is also available in lead-free compatible models (LF). Now you can be RoHS compliant and trust in the same high quality and long-lasting soldering pot for sale for years.



PD series of digitally-controlled Solder Pots.


Keeping with its tradition of product innovation, ETI now offers a new line of digitally controlled precision solder pots. With temperature such a critical factor in quality soldering, this new series of solder pots is designed to provide the industry's highest level of temperature control to ensure unmatched soldering accuracy and reliability.



PD33



The PD33 offers a deep crucible, along with an optional removable dross collection cup. This pot is an excellent choice when working on small printed circuit boards.




Specifications: Wattage 350W, Inside Damnations 3" * 3", Depth 1.5", Maximum temperature 850F, Solder Cap 4 Lbs.






PD24



Perfect to use when soldering small parts, magnet wire, wire leads and more. The PD24 is ideal for handling delicate projects that require high temperature and accuracy.





Specifications: Wattage 250W, Inside Damnations 2" Diameter, Depth 1.5", Maximum temperature 1100F, Solder Cap 1.25 Lbs.






PD74



The PD74 offers a large solder capacity and makes this pot the recommended choice when soldering long leads or for other applications requiring a deep pot.





Specifications: Wattage 1000W, Inside Damnations 3.18" Diameter, Depth 4.25", Maximum temperature 900F, Solder Cap 9.5 Lbs.






Production proven solder pots for tinning, stripping, dip soldering, and other applications.


ETI electric solder pots are made in a wide range of models. Whatever the requirements- tinning, stripping, or dip soldering, these solder pots will do the job efficiently. They are designed and engineered for today's continuous production requirements. The cast iron crucibles are designed for operator convenience, comfort, and high volume production. ETI solder pots are available in 120 and 240 volts. Special wattages can be supplied. All solder pots are supplied with a three conductor cord-set.

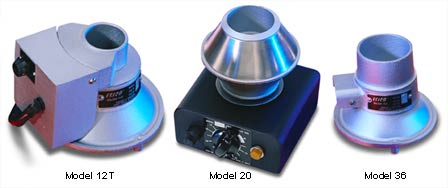

Model 12, 20, and 36 Pots: Pots you'll want to use for dip soldering of individual small pots, wire leads, etc.

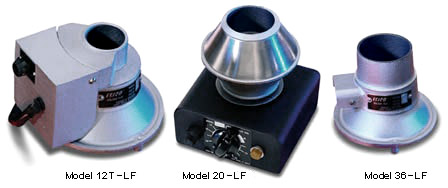

Model 12T-LF, Model 20-LF, Model 36-LF

Lead Free Compatible Models 12T-LF, 20-LF and 36-LF

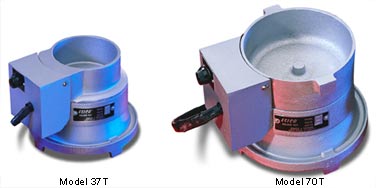

Model 37 and 70 Pots: Used in dip soldering and tinning of larger parts or when more heat may be a requirement.

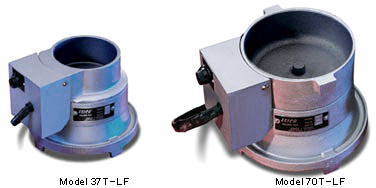

Model 37T-LF, Model 70T-LF



Lead Free Compatible Models 37T-LF and 70T-LF

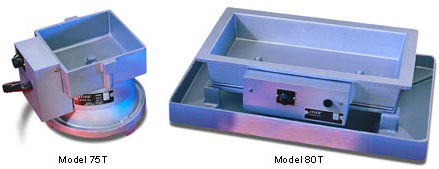

Model 75 and 80 Pots: Solder pots used extensively for short run soldering and de-soldering of through hole printed circuit boards (PCB).



Model 75 and 80 Specifications:

P#

Pot Model No

Wattage

Inside Dimensions

Inside Depth

Max. Temp. F

Estimated Solder Cap Lbs

Estimated Shipping Wt. Lbs.

Soldering Pots

EID-ETI-SP-75

75

650

4 3/4" x 4 3/4" 1 3/4"

750

12

8

EID-ETI-SP-75T

75T

650

4 3/4" x 4 3/4"

1 3/4"

650

12

10

EID-ETI-SP-80

80T

1200

6" x 12"

1 7/8"

650

35

30

Soldering Pots Lead free

EID-ETI-SP-75LF

75LF

650

4 3/4" x 4 3/4" 1 3/4"

750

12

8

EID-ETI-SP-75TLF

75TLF

650

4 3/4" x 4 3/4"

1 3/4"

650

12

10

EID-ETI-SP-80LF

80TLF

1200

6" x 12"

1 7/8"

650

35

30

* Models with suffix "T": Features an adjustable thermostat for selecting the optimum operating temperature.

** Models with suffix "LF": Features an Lead Free compatibility.



OUR BEST SELLERS

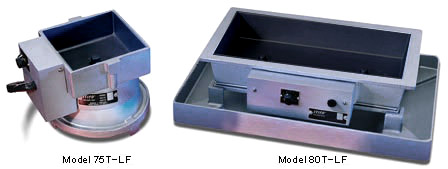

Model 75T-LF, Model 80T-LF



Lead Free Compatible Models 75T-LF and 80T-LF



Model 80 Custom tray is sold separately!






Model 71T Pot: Our large solder capacity, deep well pot for long parts. Equipped with thermostat temperature control and a dross sand tray.



    Model 71T, Model 71T-LF



Lead Free Compatible Model 71T-LF (Right)



Model 71 Custom tray is sold separately!






Safety:


See operation manual.



Basic think you need to know on melting pot:



Warning: Normal use of these products is likely to expose the user to lead, a chemical known in the State of California to cause cancer and birth defects (or other reproductive harm), or exposure to other proposition 65 chemicals.



This entire device becomes HOT in use. DO NOT TOUCH the metal surfaces or contents. ALWAYS wear eye protection. Guard against accidental spills or splatter. MOLTEN SOLDER can cause serious bums.



Notice: These products are designed for industrial use, by experienced operators, under proper supervision. Never permit an inexperienced person unfamiliar with heated solder pots and the characteristics of molten solder to use these device. Provide WARNING notice of hot pot in the area of use.



General  instructions:

  • The solder pots are designed to be used with soft alloy. Do not attempt to use these pots for other purposes.

  • When first plugging the unit in to a proper electrical outlet, have the solder to be melted present in the pot. Do not permit an empty pot to fully heat; this will damage the unit.  See picture below.

  • Keep the solder crucible full during use, by introducing additional material as it is consumed in the production process.

  • Occasionally remove accumulated oxides from inner walls and bottom of pot.

  • When solder becomes 'sluggish" due to contamination by other metals, replace the solder.

  • With thermostatically controlled pots, develop the desired temperature during production cycles by checking with a thermometer or pyrometer. Record this setting for future reference.

  • The presence of moisture can cause molten solder to 'explode" and splatter. Keep workplace and work clean and dry.

  • Never attempt to introduce a flux-core solder in to the pot.

  • Use a sand tray or insulation under the pot. Anchor pot to work surface.

  • Never operate the pot above rated voltage.

  • Disconnect the pot when not in use.

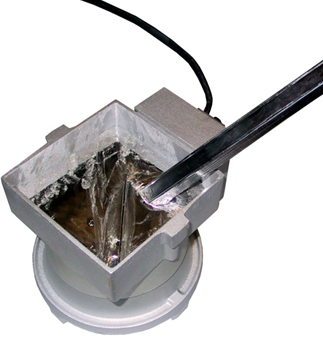

MODEL 75 ONE OFF OUR BEST SELLING MODELS



When first plugging the unit in to a proper electrical outlet, have the solder to be melted present in the pot. Do not permit an empty pot to fully heat; this will damage the unit.  See picture above.



Minimum order:



$450



Soldering Pots Model Series

Soldering Pots Description and SKU#

Price

Series 12



Soldering Pots 115VAC, 120VAC



EID-ETI-SP-12            Model 12, 200W, 115VAC, 120VAC

EID-ETI-SP-12C          Model 12C, 200W, 115VAC, 120VAC

EID-ETI-SP-12T          Model 12T, 250W, 115VAC, 120VAC,Thermostat





222.00

222.00

252.00

Soldering Pots 220VAC, 240VAC



EID-ETI-SP-12-2         Model 12, 200W, 220VAC, 240VAC

EID-ETI-SP-12C-2       Model 12C, 200W, 220VAC, 240VAC

EID-ETI-SP-12T-2       Model 12T, 250W, 220VAC, 240VAC, Thermostat





222.00

222.00

252.00

Soldering Pots 115VAC, 120VAC Lead Free



EID-ETI-SP-12TLF       Model 12T, 250W, 115VAC, 120VAC, Thermostat





333.00

Soldering Pots 220VAC, 240VAC Lead Free



EID-ETI-SP-12TLF-2    Model 12T, 250W, 220VAC, 240VAC,Thermostat





444.00

Series 20





Soldering Pots 115VAC, 120VAC



EID-ETI-SP-20            Model 20, 200W, 115VAC, 120VAC





444.00

Soldering Pots 220VAC, 240VAC



EID-ETI-SP-20-2         Model 20, 200W, 220VAC, 240VAC





444.00

Soldering Pots 115VAC, 120VAC Lead Free



EID-ETI-SP-20TLF       Model 20T, 250W, 115VAC, 120VAC, Thermostat





555.00

Soldering Pots 220VAC, 240VAC Lead Free



EID-ETI-SP-20TLF-2    Model 20T, 250W, 220VAC, 240VAC, Thermostat





555.00

Series 36





Soldering Pots 115VAC, 120VAC



EID-ETI-SP-36           Model 36, 250W, 115VAC, 120VAC





222.00

Soldering Pots 220VAC, 240VAC



EID-ETI-SP-36-2        Model 36, 250W, 220VAC, 240VAC





222.00

Soldering Pots 115VAC, 120VAC Lead Free



EID-ETI-SP-36TLF       Model 36T, 250W, 115VAC, 120VAC, Thermostat





333.00

Soldering Pots 220VAC, 240VAC Lead Free



EID-ETI-SP-36TLF-2    Model 36T, 250W, 220VAC, 240VAC, Thermostat





333.00

Series 37





Soldering Pots 115VAC, 120VAC



EID-ETI-SP-37           Model 37, 250W, 115VAC, 120VAC





222.00

Soldering Pots 220VAC, 240VAC



EID-ETI-SP-37-2        Model 37, 250W, 220VAC, 240VAC





222.00

Soldering Pots 115VAC, 120VAC Lead Free



EID-ETI-SP-37TLF       Model 37T, 250W, 115VAC, 120VAC, Thermostat





444.00

Soldering Pots 220VAC, 240VAC Lead Free



EID-ETI-SP-37TLF-2    Model 37T, 250W, 220VAC, 240VAC, Thermostat





444.00

Series 70





Soldering Pots 115VAC, 120VAC



EID-ETI-SP-70           Model 70, 650W, 115VAC, 120VAC





222.00

Soldering Pots 220VAC, 240VAC



EID-ETI-SP-70-2        Model 70, 650W, 220VAC, 240VAC





222.00

Soldering Pots 115VAC, 120VAC Lead Free



EID-ETI-SP-70TLF       Model 70T, 650W, 115VAC, 120VAC, Thermostat





444.00

Soldering Pots 220VAC, 240VAC Lead Free



EID-ETI-SP-70TLF-2    Model 70T, 650W, 220VAC, 240VAC, Thermostat





444.00

Series 71





Model 71 Custom tray is sold separately!



Soldering Pots 115VAC, 120VAC



EID-ETI-SP-71           Model 71, 1000W, 115VAC, 120VAC





444.00

Soldering Pots 220VAC, 240VAC



EID-ETI-SP-71-2        Model 71, 1000W, 220VAC, 240VAC





555.00

Soldering Pots 115VAC, 120VAC Lead Free



EID-ETI-SP-71TLF       Model 71T, 1000W, 115VAC, 120VAC, Thermostat





555.00

Soldering Pots 220VAC, 240VAC Lead Free



EID-ETI-SP-71TLF-2    Model 71T, 1000W, 220VAC, 240VAC, Thermostat





633.00

Soldering Pots custom tray (model 71)



EID-ETI-SP-71-TRAY-4SCW  Model 71 custom tray





121.80

Series 75





Soldering Pots 115VAC, 120VAC



EID-ETI-SP-75           Model 75, 650W, 115VAC, 120VAC





252.00

Soldering Pots 220VAC, 240VAC



EID-ETI-SP-75-2        Model 75, 650W, 220VAC, 240VAC





354.00

Soldering Pots 115VAC, 120VAC Lead Free



EID-ETI-SP-75TLF       Model 75T, 650W, 115VAC, 120VAC, Thermostat





354.00

Soldering Pots 220VAC, 240VAC Lead Free



EID-ETI-SP-75TLF-2    Model 75T, 650W, 220VAC, 240VAC, Thermostat





555.00

Series 80





Model 80 Custom tray is sold separately!

Soldering Pots 115VAC, 120VAC



EID-ETI-SP-80           Model 80, 1200W, 115VAC, 120VAC





693.00

Soldering Pots 220VAC, 240VAC



EID-ETI-SP-80-2        Model 80, 1200W, 220VAC, 240VAC





899.33

Soldering Pots 115VAC, 120VAC Lead Free



EID-ETI-SP-80TLF       Model 80T, 1200W, 115VAC, 120VAC, Thermostat





891.00

Soldering Pots 220VAC, 240VAC Lead Free



EID-ETI-SP-80TLF-2    Model 80T, 1200W, 220VAC, 240VAC, Thermostat





1,017.00

Soldering Pots custom tray (model 80)



EID-ETI-SP-80-TRAY-4SCW  Model 80 custom tray with 4 adjustable screws.





155.10

PD series of digitally-controlled Solder Pots.

Series PD24





Soldering Pots 115VAC, 120VAC Digital Settings Thermostat



EID-ETI-SP-PD24            Model PD24, 250W, 115VAC, 120VAC





1,017.00

Soldering Pots 220VAC, 240VAC Digital Settings Thermostat



EID-ETI-SP-PD24-2         Model PD24, 250W, 220VAC, 240VAC





1,017.00

Soldering Pots 115VAC, 120VAC Digital Settings Thermostat Lead Free



EID-ETI-SP-PD24TLF       Model PD24T, 250W, 115VAC, 120VAC, Thermostat





1,017.00

Series PD33





Soldering Pots 115VAC, 120VAC Digital Settings Thermostat



EID-ETI-SP-PD33            Model PD33, 350W, 115VAC, 120VAC





1,311.00

Soldering Pots 220VAC, 240VAC Digital Settings Thermostat



EID-ETI-SP-PD33-2         Model PD33, 350W, 220VAC, 240VAC





1,311.00

Soldering Pots 115VAC, 120VAC Digital Settings Thermostat Lead Free



EID-ETI-SP-PD33TLF        Model PD33T, 350W, 115VAC, 120VAC, Thermostat





1,311.00

Series PD74





Soldering Pots 115VAC, 120VAC Digital Settings Thermostat



EID-ETI-SP-PD74            Model PD74, 1000W, 115VAC, 120VAC





1422.00

Soldering Pots 220VAC, 240VAC Digital Settings Thermostat



EID-ETI-SP-PD74-2         Model PD74, 1000W, 220VAC, 240VAC





1,422.00

Soldering Pots 115VAC, 120VAC Digital Settings Thermostat Lead Free



EID-ETI-SP-PD74TLF       Model PD74T, 1000W, 115VAC, 120VAC, Thermostat





1,944.00

  •
