AD590 current transducer to degree C (mV)

This kit allows you to measure degrees C utilizing temperature to current transducer IC AD590

Model B shown above with sensor connection via terminal block

Kit Model  A Includes

• 953 Ohms 1/%      Resistor                1pc.

• 2.74 Ohms 1/%     Resistor                1pc.

• 7.5 Ohms 1/%       Resistor                1pc.

• 8.66 Ohms 1/%     Resistor                1pc.

• 100 Ohms            Trimmer                1pc.

• 2K Ohms              Trimmer                1pc.

• LM358-1.2            Diode                   4pc.

• 2P Terminal Block   Connector             3pc.

• PCB                                               1pc.

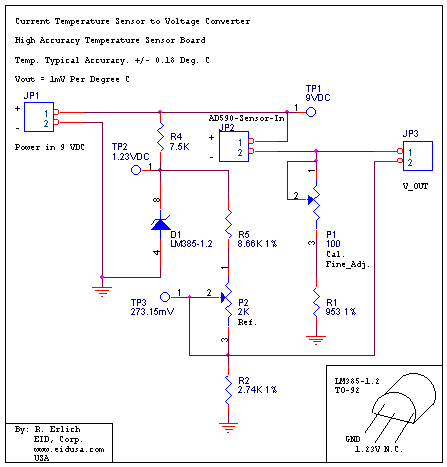

Schematic

Description and SKU#

Price


Deg. C using AD590

EID-K-TEMP-CX1-590-ASM Fully-

assembled

EID-K-TEMP-CX1-590-KIT Kit

29.00

15.95

EID-K-TEMP-XX1-590-M1-PCB PCB Only this PCB option allow you to connect the board to the 3.5 display kit to show temperature.

9.99

EID-K-TEMP-XX1-590-M2-PCB PCB Only

7.99

  ^•
