3.5 digits 7 segment display kit
Input voltage can be configured to 0-200mV or 0-2V floating signals.
Choose a decimal point via on-board soldering junction.
Last digit (on right) can be set to the following indicators: c, C, F, A. this will allow you to turn the display to temperature or current meter when needed.
Kit includes

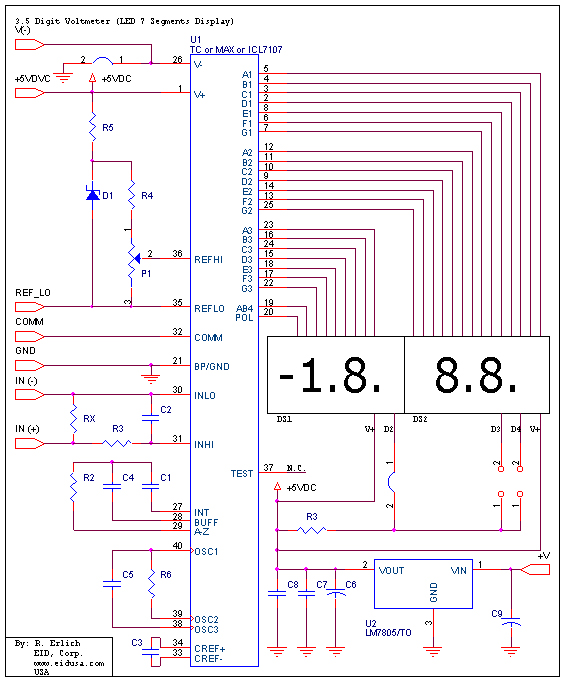

Schematic
|
||
|
Description and SKU# |
Price |
Picture |
|

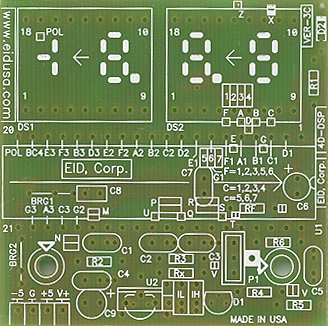

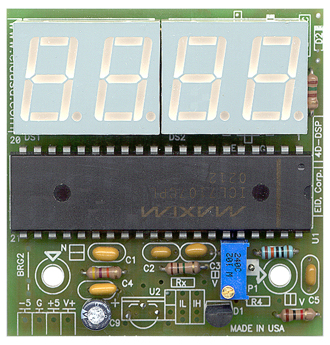

3.5 digit 7-seg display EID-K-DSPL-350-M1-ASM Fully assembled EID-K-DSPL-350-M1-KIT Kit |
45.00
33.95 |
|
| EID-K-DSPL-350-M1-PCB-M PCB Only | 18.99 |
|
| Options | ||
| EID-K-DSPL-350-T1-PCB Adapter with terminal block input option, PCB only | 3.99 |
|
|
EID-K-DSPL-M55-350-PCB Adapter
with terminal block. This circuit converts the Input rail of +5VDC to
+/-5 when needed,
PCB only.
For parts and instructions see voltage converter kit. |
7.99 |
|
|

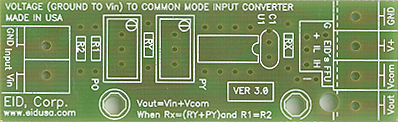

EID-K-DSPL-ASM-350-PCB Adapter
with terminal block. This circuit converts rail input voltage of 0-2VDC
(voltage reference to the ground) to floating voltage. This will
solve the CMRR problem,
PCB only.
For parts and instructions see summing op-amp kit. |
9.99 |
|
|
EID-K-DSPL-ASB-350-PCB Adapter
with terminal block. This circuit converts rail input voltage of
0-20VDC
(voltage reference to the ground) to floating voltage with 1:10 attenuator.
This will solve the CMRR problem and let you measure the same
rail voltage the circuit is powered from. (i.e monitoring car battery
7.5V-12V DC),
PCB only.
For parts and instructions see subtractor op-amp kit. |
9.99 |
|

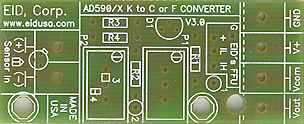

| EID-K-TEMP-CX1-590-PCB-M-1 PCB only. This PCB option allows you to connect the board to the display. This will allow you to show temperature in degrees C. For additional information see AD590C kit. | 9.99 |
|
| EID-K-TEMP-FX1-590-PCB-M-1 PCB only. This PCB option allows you to connect the board to the display. This will allow you to show temperature in degrees F. For additional information see AD590F kit. | 9.99 |
|
|
|
||
